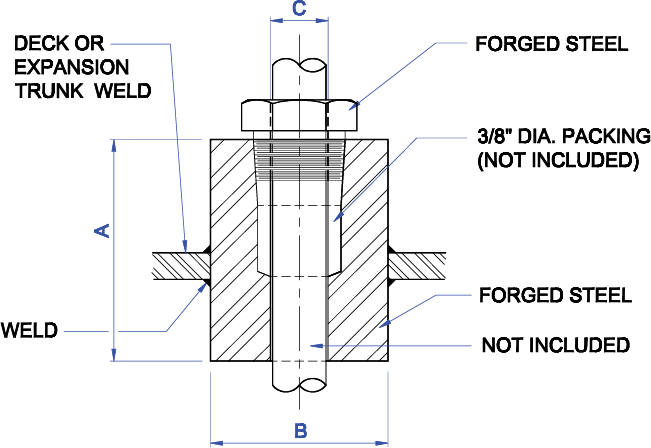

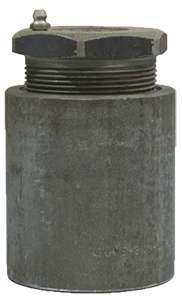

NABRICO - DF-437 Stuffing Gland

MODEL No.	PART No.	SIZE ROD	A	B	C	WT. (lbs)
DF-437-3/4	75191	3/4"	3-1/8"	2-1/2"	13/16"	4
DF-437-1	6254	1"	3-1/8"	2-1/2"	1-1/16"	4
DF-437-1 1/4	75175	1-1/4"	3-3/8"	3"	1-5/16"	5
DF-437-1 1/2	75183	1-1/2"	3-3/8"	3"	1-9/16"	5

MODEL No.	PART No.	SIZE ROD	A	B	C	WT. (kg)
DF-437-3/4	75191	19 mm	79 mm	64 mm	21 mm	2
DF-437-1	6254	25 mm	79 mm	64 mm	27 mm	2
DF-437-1 1/4	75175	32 mm	86 mm	76 mm	33 mm	3
DF-437-1 1/2	75183	38 mm	86 mm	76 mm	40 mm	3
