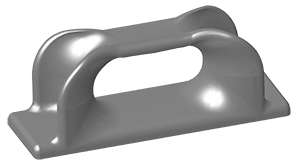

DF-497 / DF-480 / DF-490 Cast Steel Closed Chock

DF-497 / DF-480 / DF-490 Cast Steel Closed Chock
No SVG support

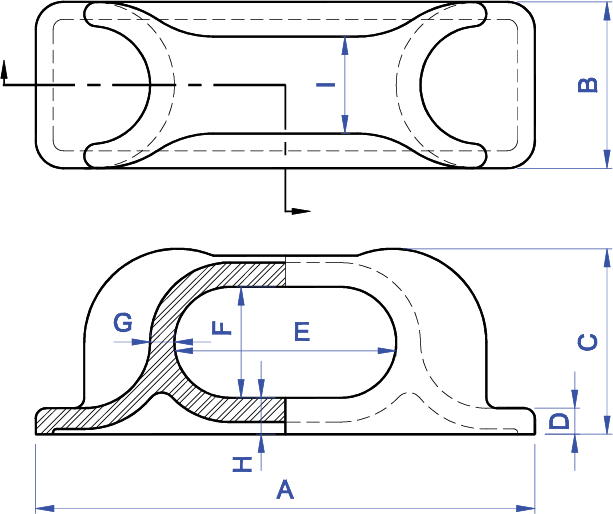

MODEL No. PART No. SIZE A B C D E F G H I WT. (lbs)
DF-497 89478 4x8 19-3/4" 6" 6-3/4" 1-1/8" 8" 4" 1" 1-3/8" 3-1/2" 84
DF-480 89397 6x12 27-3/4" 9" 10-1/8" 1-1/2" 12" 6" 1-3/8" 2-1/16" 5-1/4" 191
DF-490 89354 8x16 36" 12" 13-3/8" 1-7/8" 16" 8" 1-3/4" 2-5/8" 7" 455
