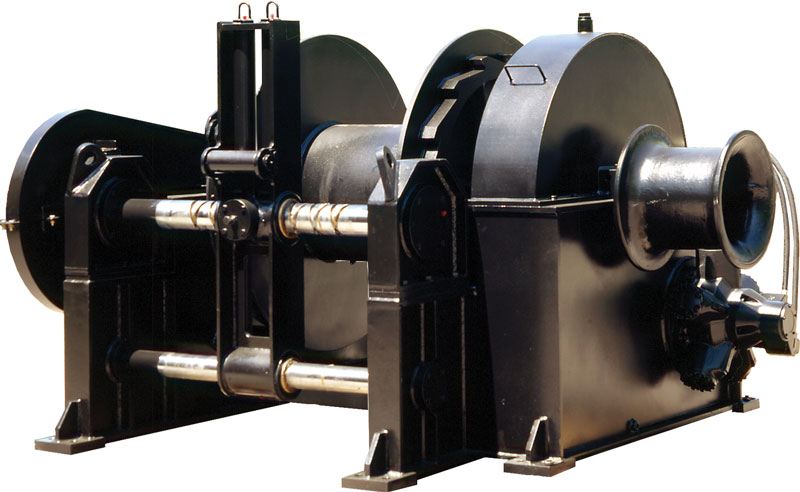

- Fabricated steel construction.
- Three coat zinc and epoxy paint system.
- Electric or hydraulic power.
- Jaw clutched drum.
- Single or double warping heads.
- Drum to spool 1200' of 1 3/4 inch diameter wire rope.
- Two 15 inch diameter steel gypsy heads.
- Hydraulic motor with fail safe motor brake.
- 4-way control valve mounted and piped on the winch.
- Manually operated band brake with stainless steel brake and steel hand wheel.
- Lever operated machined jaw clutch.
|
- Spur gear reduction operating in oil bath.
- Level wind available.
- Drum band brake and holding dog.
- Drum capacity and line pull to meet customer requirements.
- Wire rope level wind for uniform lay of wire on the drum.
- Ratchet and pawl type holding dog on the drum.
- Rated to lift a 5020 lbs. anchor from 30 fathoms at 30 fpm.
- Rated line pull 20,000 lbs.
- Other sizes and features available.
- Other available offshore deck machinery: mooring winches, towing winches, anchors, chain, and capstans.
- Contact NABRICO with your specific requirements.
|
